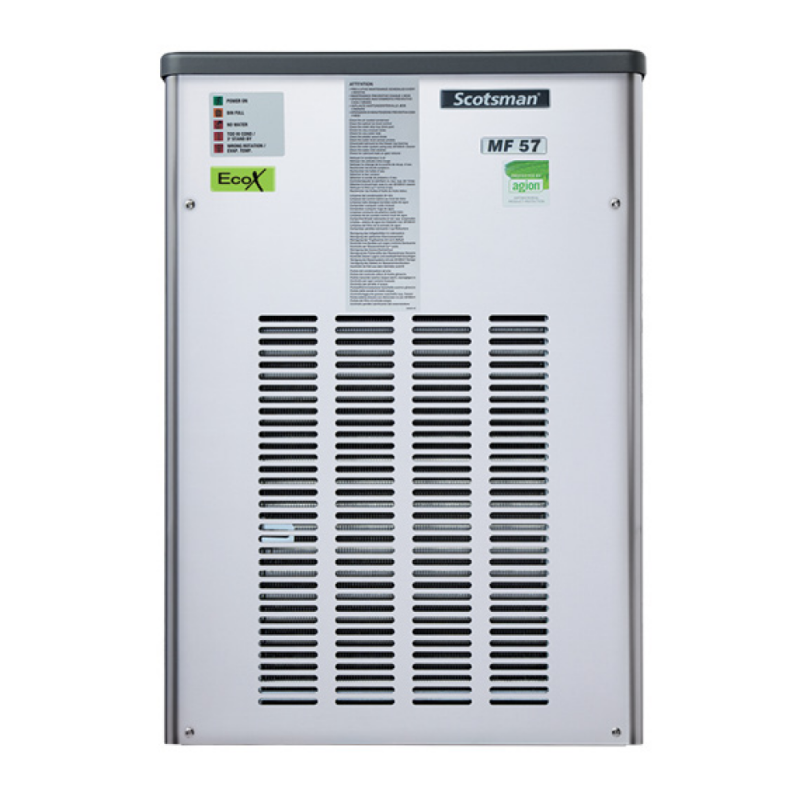

MFN 57 Modular Ice Machine 350 kg
Model Scotsman MFN 57 (head only) Dimensions (W x D x H) 538 x 663 x 794 mm Max production / 24hrs 350 Kg Recommended Storage Bins SB393 (181Kg) or SB550 (252Kg) Ice type Nugget 1g Unit weight 94 Kg Water consumption (A) 11.0 Litre/hr Energy consumption (A) 29.7 kWh/24hrs Refrigeration R290 Voltage 230v / 50hz / 1ph Fuse / CB rating 20 amps Recommended water filter 3M HF60-S
• Hermetic compressor. Stainless steel auger and freezing cylinder (evaporator). Equipped with an electronic control board.
• Ice breaker made in specially strengthened alloy, allowing for greater
extrusion pressure to deliver a dryer-quality of nugget ice (92% dry).
• Long-lasting stainless steel roller-bearings.
• Double protection - electronic rotation sensor and drive coupling - on
gear motor and gear reducer.
• Low- water sensor protection on refrigeration and gear motor system.
Optical ice level sensor for machine shut down.
• Stainless steel side panels in scotch-brite finish, with rounded corners for
enhanced ease of cleaning and aesthetics.
• Side panels are removable on all four sides to ease maintenance and
after-sales service operations.
• PS plastic top cover.
